Elite Architectural Smart PIR Motion Sensor Automation System with WiFi App Alert Control Module

The Elite Architectural Smart PIR Motion Sensor Automation System with WiFi App Alert Control Module is designed for indoor motion monitoring with app-based control and real-time alerts. It connects to 2.4GHz WiFi and works with Tuya Smart or Smart Life applications, allowing remote monitoring and control. The device supports multiple alarm modes and adjustable detection angles, making it suitable for residential and general indoor security applications such as homes, garages, corridors, and small commercial spaces.

Specifications

• Model Number: RC22

• Mfr Part Number: PIR-1

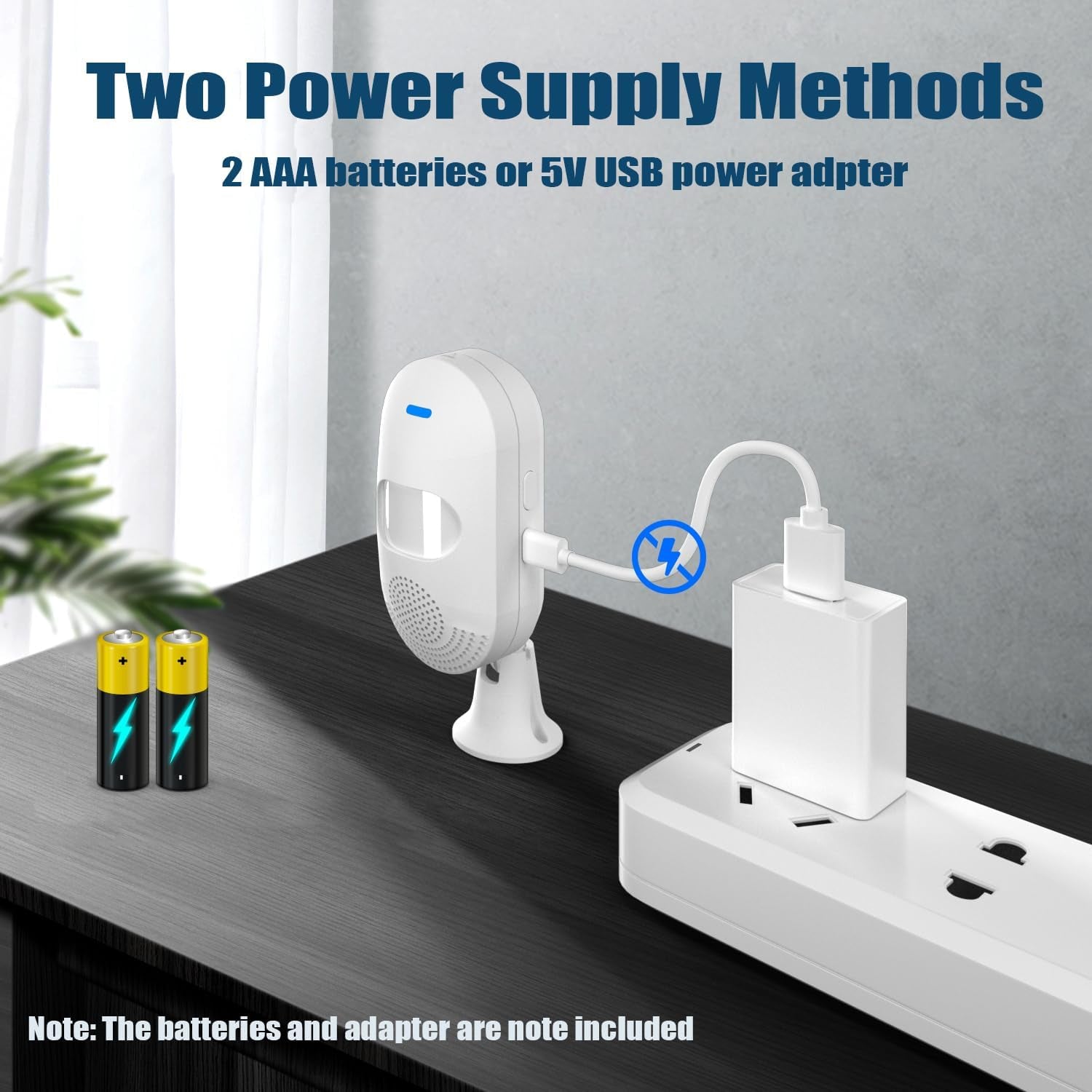

• Power Source: Battery powered or USB powered

• Battery Type: 2 x AAA batteries (not included)

• Working Voltage: 5V

• USB Voltage: DC 5V

• Frequency: 2.4 GHz WiFi

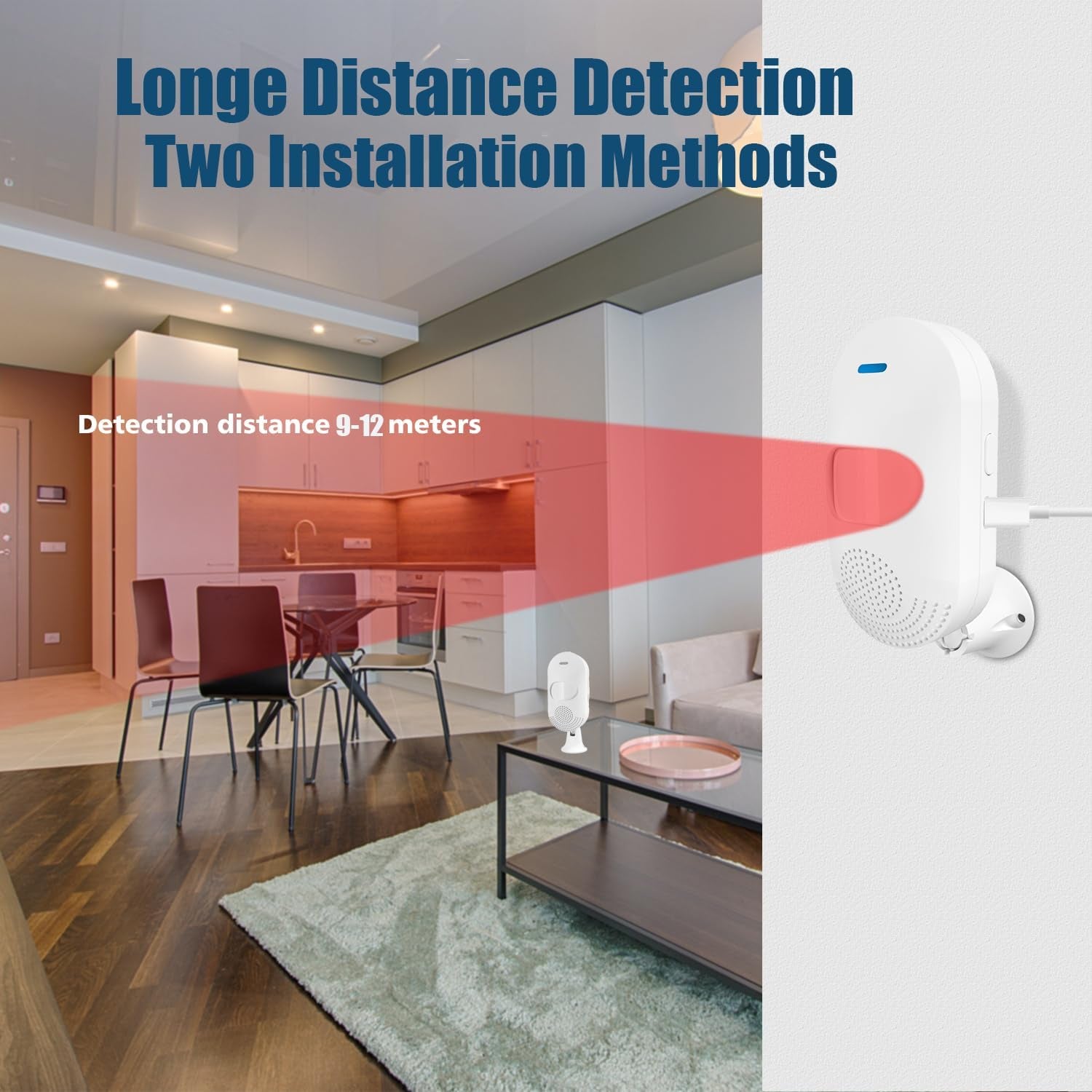

• Maximum Detection Range: 32.8 feet (10 meters)

• Detection Angle: 90° detection, 120° vertical range, 360° rotation capability

• Alarm Sound: >80–100 dB

• Operating Temperature: -10°C to +50°C

• Standby Current: 20mA

• Alarm Current: ≤60mA

• Item Weight: 3.53 oz

• Dimensions: 2.68"D x 2.2"W x 2.2"H

• Mounting Type: Wall mount

Features

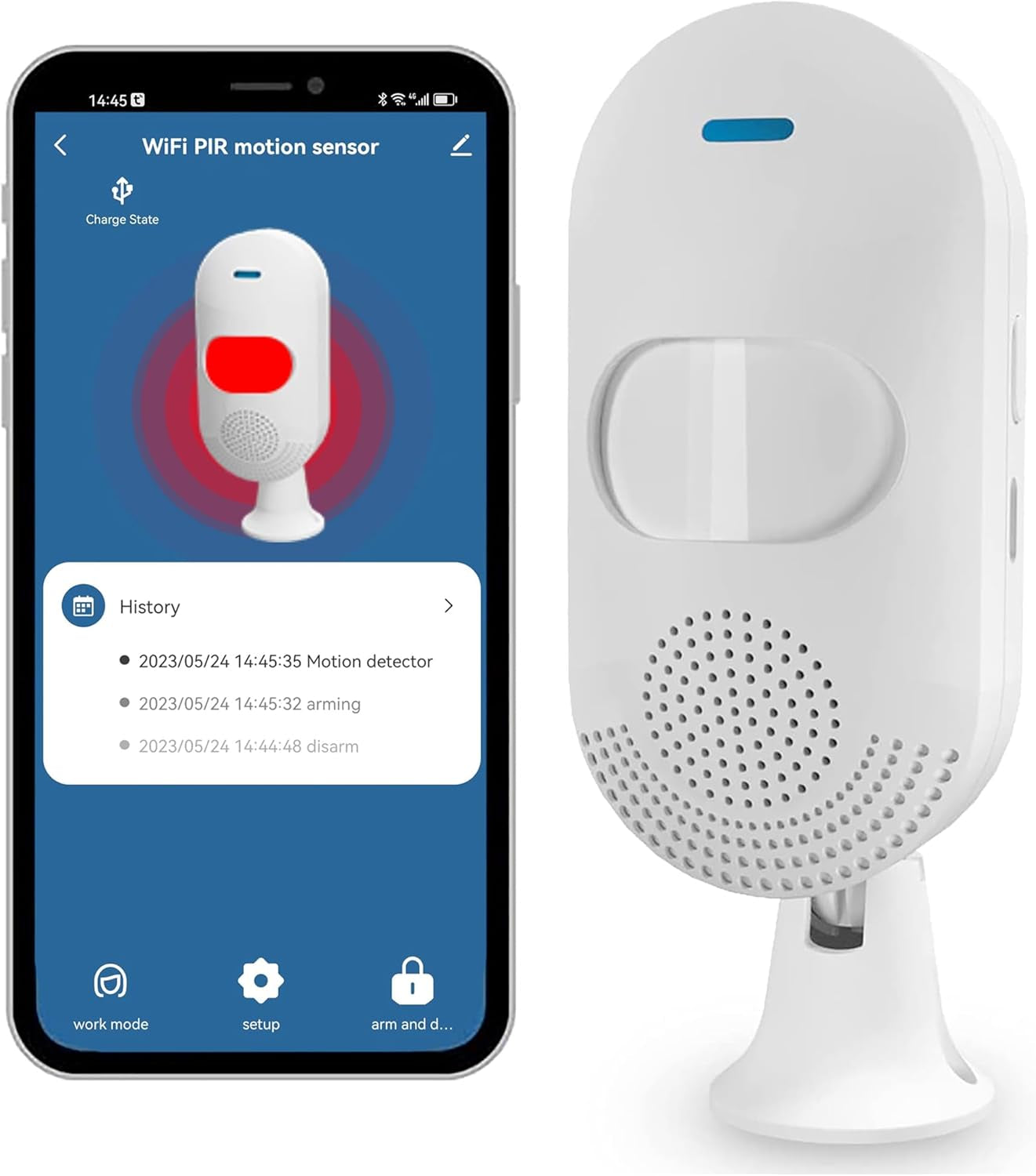

• WiFi App Connectivity: Works with Tuya Smart and Smart Life apps for remote monitoring and alerts.

• Motion Detection System: Detects movement within a defined range and sends notifications.

• Multiple Alarm Modes: Supports sound, silent, and notification-based alert modes.

• Dual Power Options: Operates via USB connection or AAA batteries for flexible installation.

• Adjustable Detection Angle: Rotatable design for flexible positioning and coverage.

• Smart Device Linking: Can connect with compatible smart home devices for automated actions.

• Easy Installation: Simple setup with wall-mount capability for indoor use.

Warranty

• Warranty: 24 months manufacturer warranty
